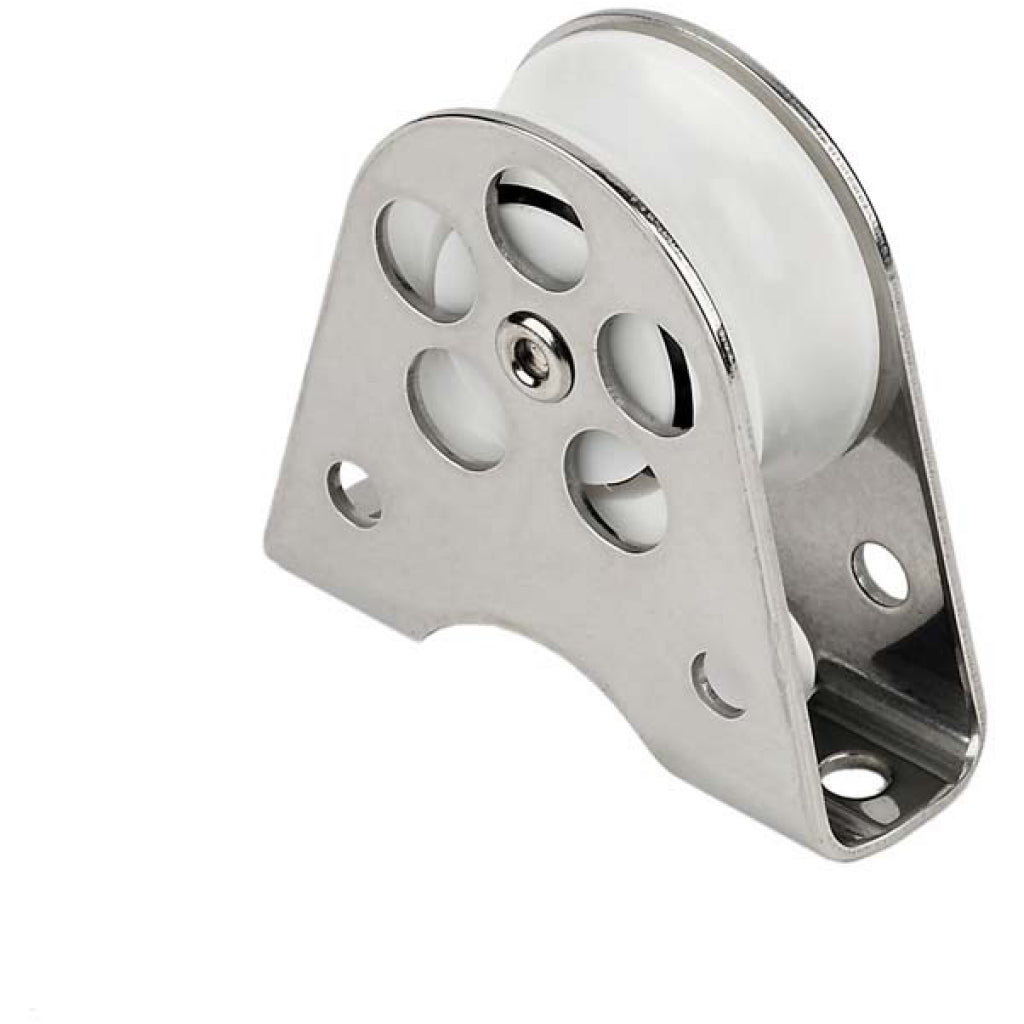

Schaefer Fairlead Block

Features:

• Hinged base adjusts to variable halyard and control line angles.
• Smooth Delrin ball bearing sheave
• Low profile design keeps control lines and halyards close to the deck
• Open ball bearing races are easy to maintain
• Tumbled and polished stainless steel frame

Specifications:

• Maximum Line Size: 7/16" (11mm)
• Safe Working Load: 1,000lbs. (454kg)
• Sheave Diameter: 2" (51mm)
• Length: 3-1/4" (83mm)
• Width: 7/8" (22mm)
• Height: 3-1/16" (78mm)
• Bearing Height: 1-3/16" (30mm)
• Fastener Centers: 2-1/8" (54mm)
• Required Fasteners: 2 x 1/4" (6mm) flat head
• Weight: 7.3oz. (207g)
