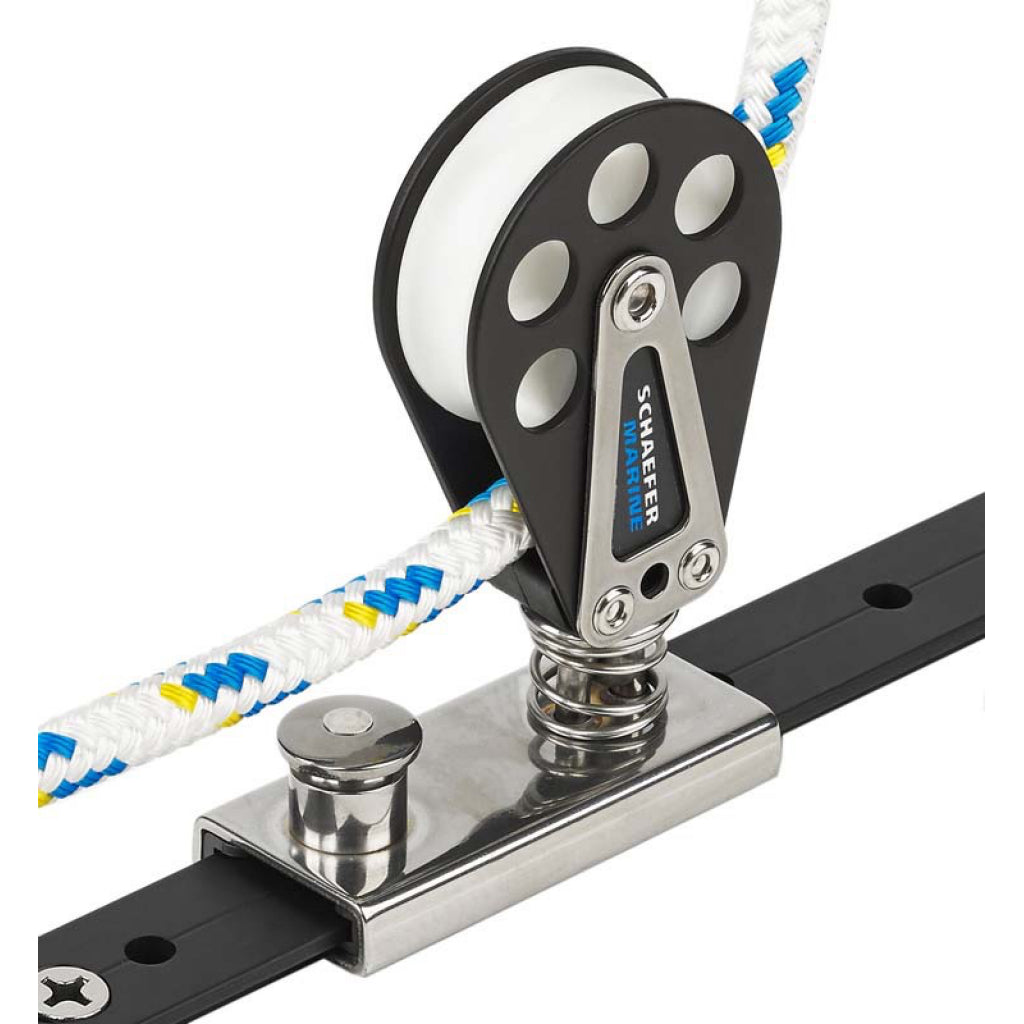

Schaefer Lead Block For 1" Track

Features:

• Stand up spring block for 1" T-Track.
• Anodized aluminum cheeks and stainless steel slider ensure reliability. Polyethylene liner and pin stop allow for easy adjustment.

Specifications:

• Track Size: 1" x 1/8" (25 mm x 3 mm)
• Sail Area: 27', 5000 lbs., 315 sq. ft (8 m, 2270 kg, 29 m2)
• Sheave Diameter: 2" (51 mm)
• Max Line: 7/16" (11 mm)
• Length: 3" (76 mm)
• Width: 1-1/4" (31 mm)
• Height: 4-5/32" (105 mm)
• Bearing Height: 2-7/32" (56 mm)
• Safe Working Load: 1750 lbs. (795 kg)
• Weight: 7.0 oz. (198 g)
