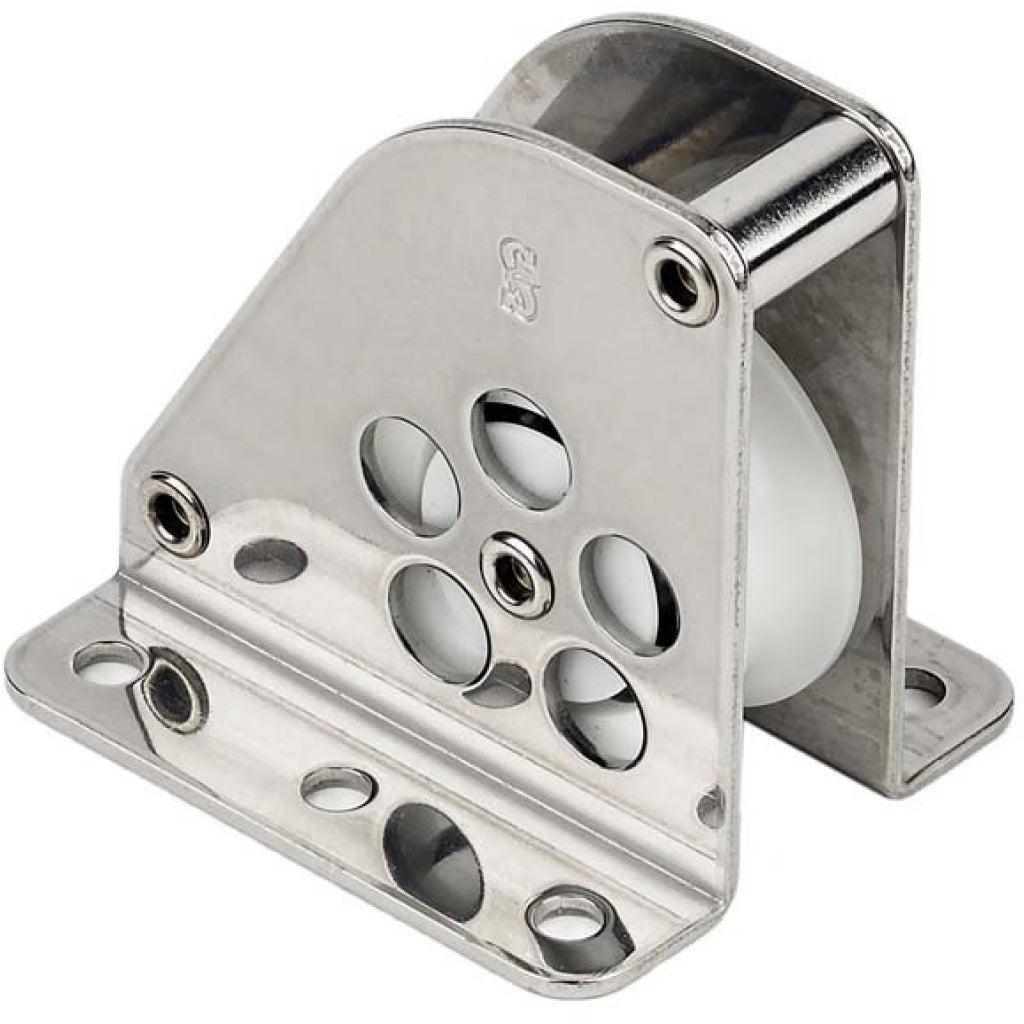

Schaefer Over The Top Block

Schaefer over the top blocks are designed to route control lines over the forward edge of cabin houses, coamings or rails.

Features:

• Perfect for raised salon designs
• Polished and tumbled stainless steel cage
• Delrin Ball bearing sheave for a low friction lead
• Provides a smart solution for difficult leads

Specifications:

• Maximum line size: 7/16" (11mm)
• Safe Working Load: 650lbs. (295kg)
• Length: 2-11/32" (60mm)
• Width: 2" (51mm)
• Height: 2-11/32" (60mm)
• Hole Centers: 1-25/32"(45mm)
• Sheave Diameter: 1-7/16" (37mm)
• Required Fasteners: 6 x 10 (5mm)
• Bearing Height: 1-13-32"(36mm)
