STANDING RIGGING

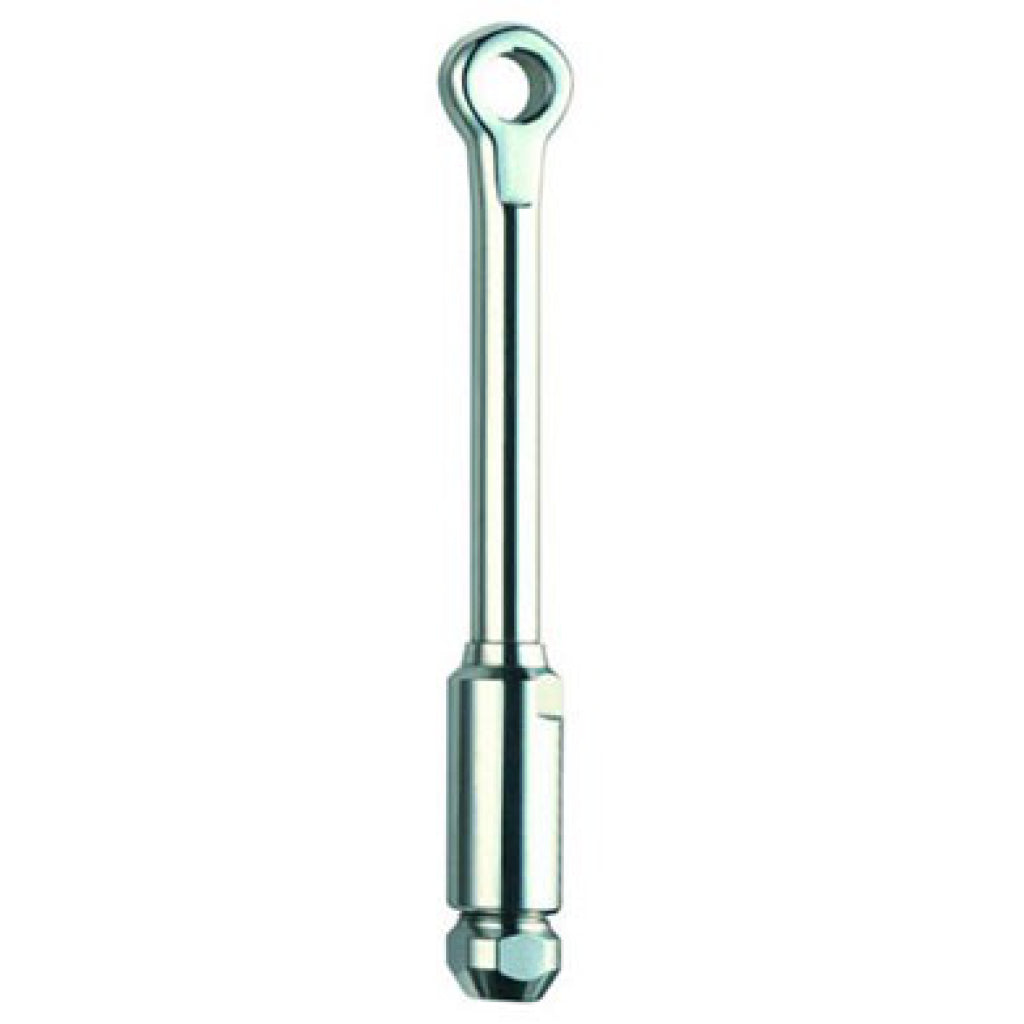

Sta-Lok Marine 5/16" Marine Eye Long - w/5/8" pin

Name: Sta-Lok Marine 5/16" Marine Eye Long - w/5/8" pin
Brand: 143
SKU: 178-08-5/8
Price: 158.99 CAD
Availability: InStock

Item# 178-08-5/8

$158⁹⁹

Sta-Lok Marine 5/16" Marine Eye Long - w/5/8" pin usually available 5-7 business days upon ordering.

Description

Sta-Lok Marine Long Eye

Additional length of Long Eye allows replacement of damaged and unseaworthy fittings

Save on having to replace wire rope.

Provides instant repair anywhere.

Quick and easy to install. Only basic hand tools required.

High strength 316 Stainless steel. Rust Free.

For right hand and left hand lay wire rope.

Packed for 1x19 wire as standard.

Different wedges are available to terminate 7 strand and compacted wire ropes.

Wire sizes 3/16" to 1/2"

Stay-Lok Part #	Wire Size	Eye Length	Eye Thickness	Pin Diameter
178-05	3/16"	4 13/16"	19/64"	25/64"
178-55-3/8	7/32"	4 7/8"	3/8"	25/64"
178-55	7/32"	4 7/8"	3/8"	29/64"
178-06-3/8	1/4"	4 7/8"	3/8"	25/64"
178-06	1/4"	5 3/4"	15/32"	33/64"
178-07	9/32"	5 25/32"	15/32"	33/64"
178-08	5/16"	5 3/4"	15/32"	33/64"
178-08-5/8	5/16"	6 5/8"	17/32"	5/8"
178-10	3/8"	5 7/16"	17/32"	5/8"
