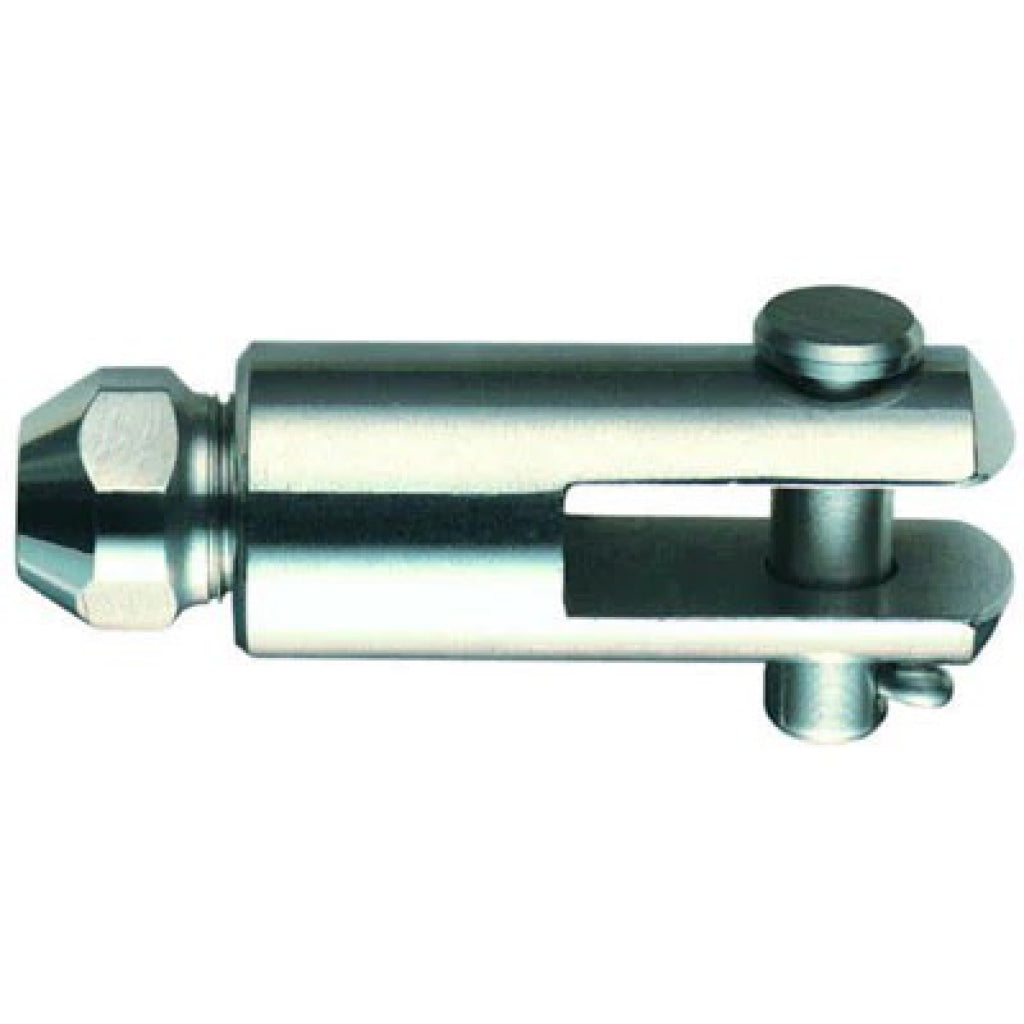

Sta-Lok Marine Fork.
- Sta-Lok Self Fit Terminal, the reusable alternative to swage.
- Easy to install. Only basic hand tools required.
- No premeasurement needed.
- Guaranteed stronger than wire rope.
- High strength 316 Stainless steel. Rust Free.
- For right hand and left hand lay wire rope.
- Packed for 1x19 wire as standard.
- Different wedges are available to terminate 7 strand and compacted wire ropes.

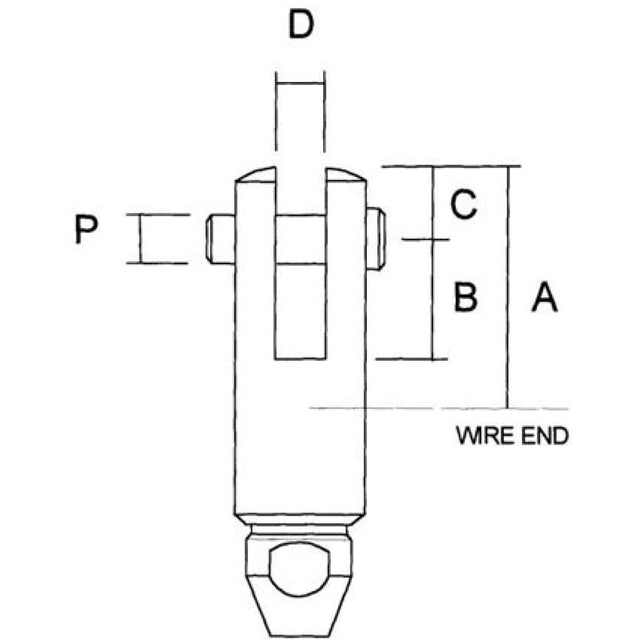

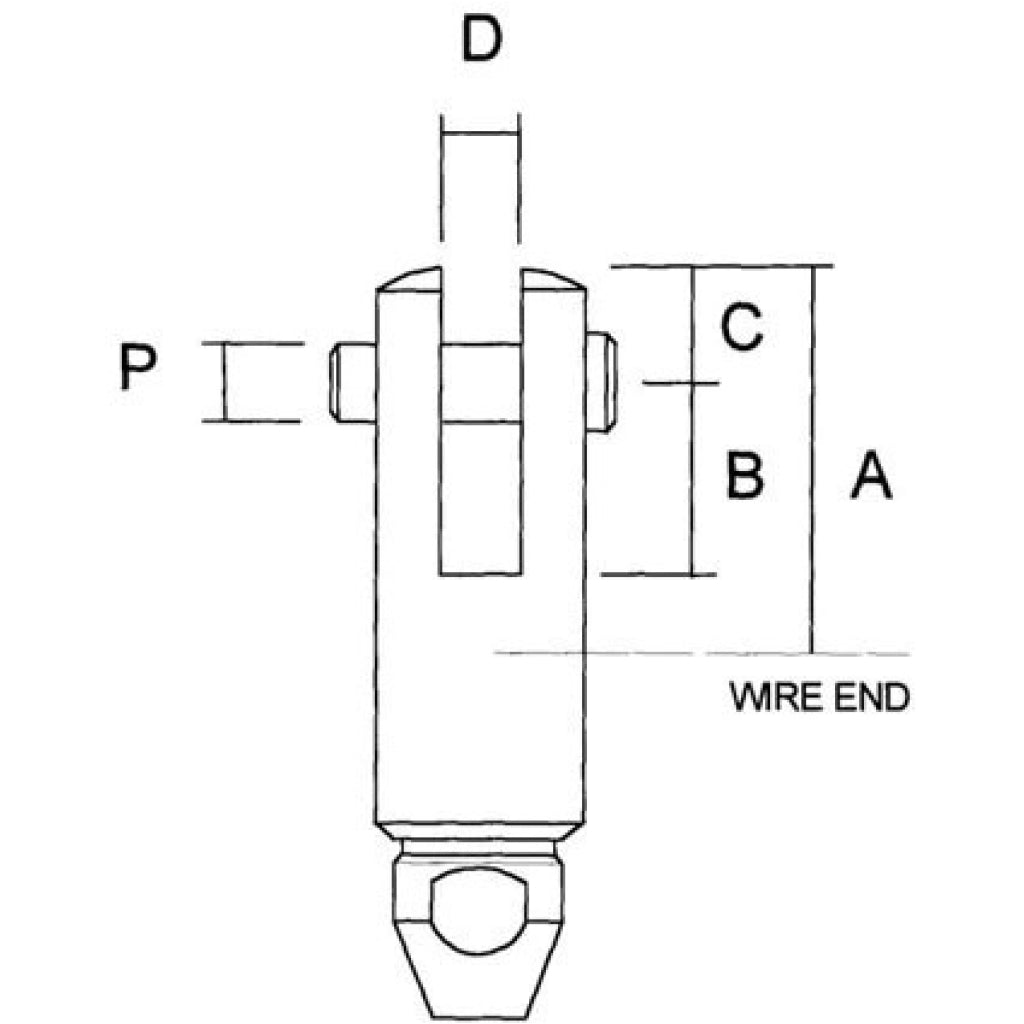

| Sta-Lok Part # | Wire Size | Jaw Width | Pin Diameter |
|---|---|---|---|
| 134-03 | 1/8" | 7/32" | 13/64" |
| 134-04 | 5/32" | 1/4" | 1/4" |
| 134-05 | 3/16" | 5/16" | 5/16" |
| 134-55 | 7/32" | 7/16" | 7/16" |
| 134-06 | 1/4" | 7/16" | 7/16" |
| 134-07 | 9/32" | 7/16" | 7/16" |
| 134-08 | 5/16" | 35/64" | 1/2" |
| 134-10 | 3/8" | 35/74" | 5/8" |
