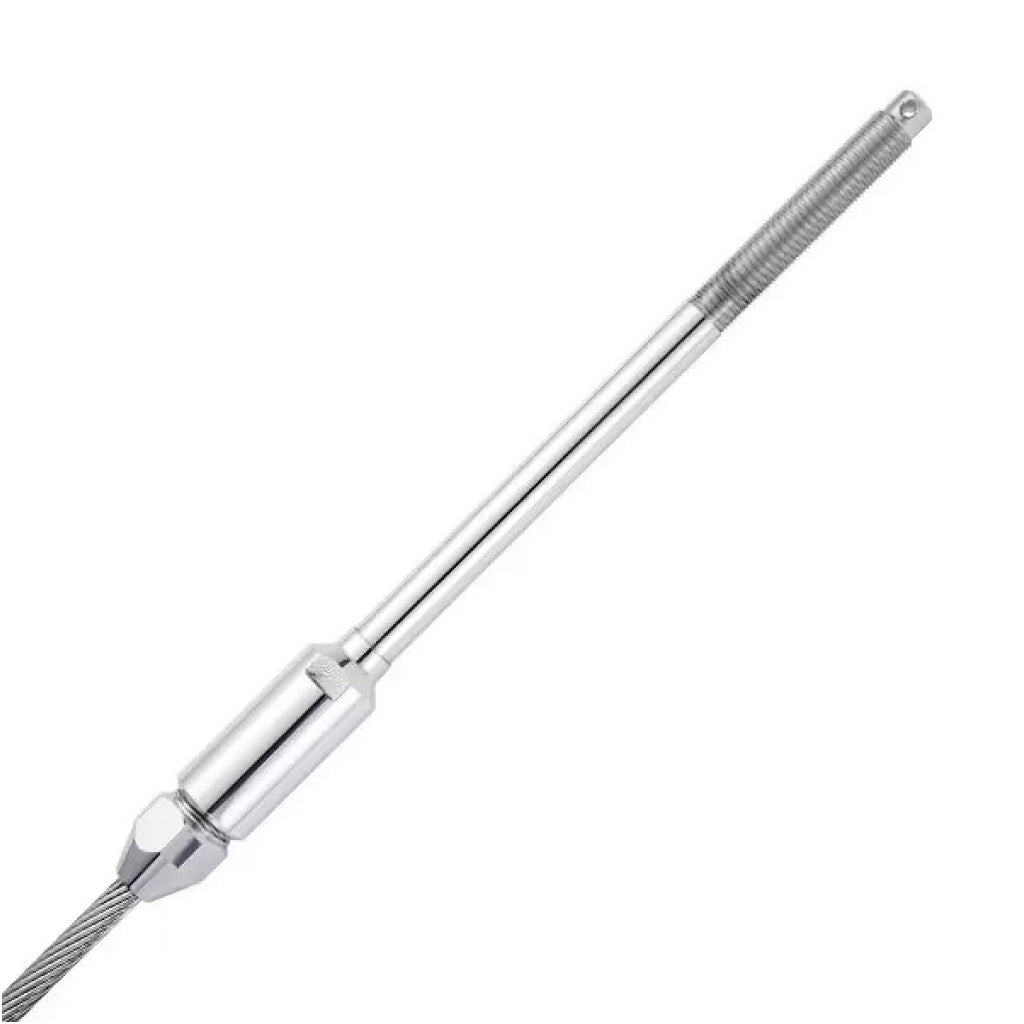

Sta-Lok Marine Long Stud
- Additional length of Long Stud allows replacement of damaged and unseaworthy fittings.
- Save on having to replace wire rope.
- Provides instant repair anywhere.
- Quick and easy to install. Only basic hand tools required.
- High strength 316 Stainless steel. Rust Free.
- Right hand thread only.
- For right hand and left hand lay wire rope.
- Packed for 1x19 wire as standard.
- Different wedges are available to terminate 7 strand and compacted wire ropes.
| Sta-Lok Part # | Wire Size | Stud Length | Thread Length | Thread Diameter |
|---|---|---|---|---|
| 176-04 | 5/32" | 5 9/16" | 2 1/8" | 5/16" |
| 176-05-5/16 | 3/16" | 6 1/16" | 2 1/8" | 5/16" |
| 176-05 | 3/16" | 6 9/16" | 2 5/8" | 3/8" |
| 176-55 | 7/32" | 7 3/32" | 2 5/8" | 3/8" |
| 176-55-7/16 | 7/32" | 7 27/64" | 2" | 7/16" |
| 176-55-1/2 | 7/32" | 8 7/8" | 3 1/4" | 1/2" |
| 176-06-3/8 | 1/4" | 7 3/32" | 2 5/8" | 3/8" |
| 176-06-7/16 | 1/4" | 7 27/64" | 3" | 7/16" |
| 176-06 | 1/4" | 8 7/8" | 3 1/4" | 1/2" |
| 176-07 | 9/32" | 8 7/8" | 3 1/4" | 1/2" |
| 176-08 | 5/16" | 8 7/8" | 3 1/4" | 1/2" |
| 176-08-5/8 | 5/16" | 10 11/16" | 3 3/4" | 5/8" |
| 176-10 | 3/8" | 10 23/32" | 3 3/4" | 5/8" |
| 176-11 | 7/16" | 13 3/8" | 4 17/32" | 3/4" |
| 176-12 | 1/2" | 13 3/8" | 4 17/32" | 3/4" |
