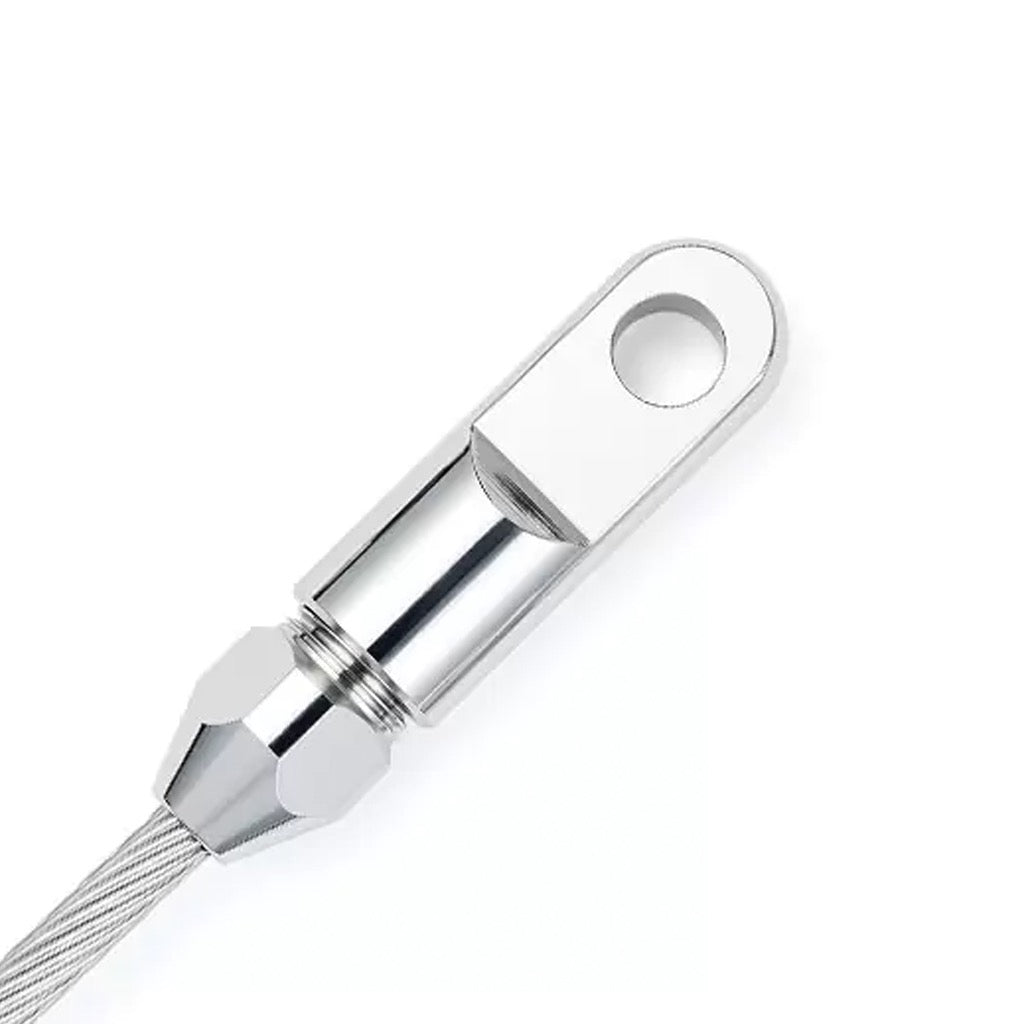

Sta-Lok Marine Eye Sta-Lok Self Fit Terminal, the reusable alternative to swage. Easy to install. Only basic hand tools required. No premeasurement needed. Guaranteed stronger than wire rope. High strength 316 Stainless steel. Rust Free. For right hand and left hand lay wire rope. Packed for 1x19 wire as standard. Different wedges are available to terminate 7 strand and compacted wire ropes.

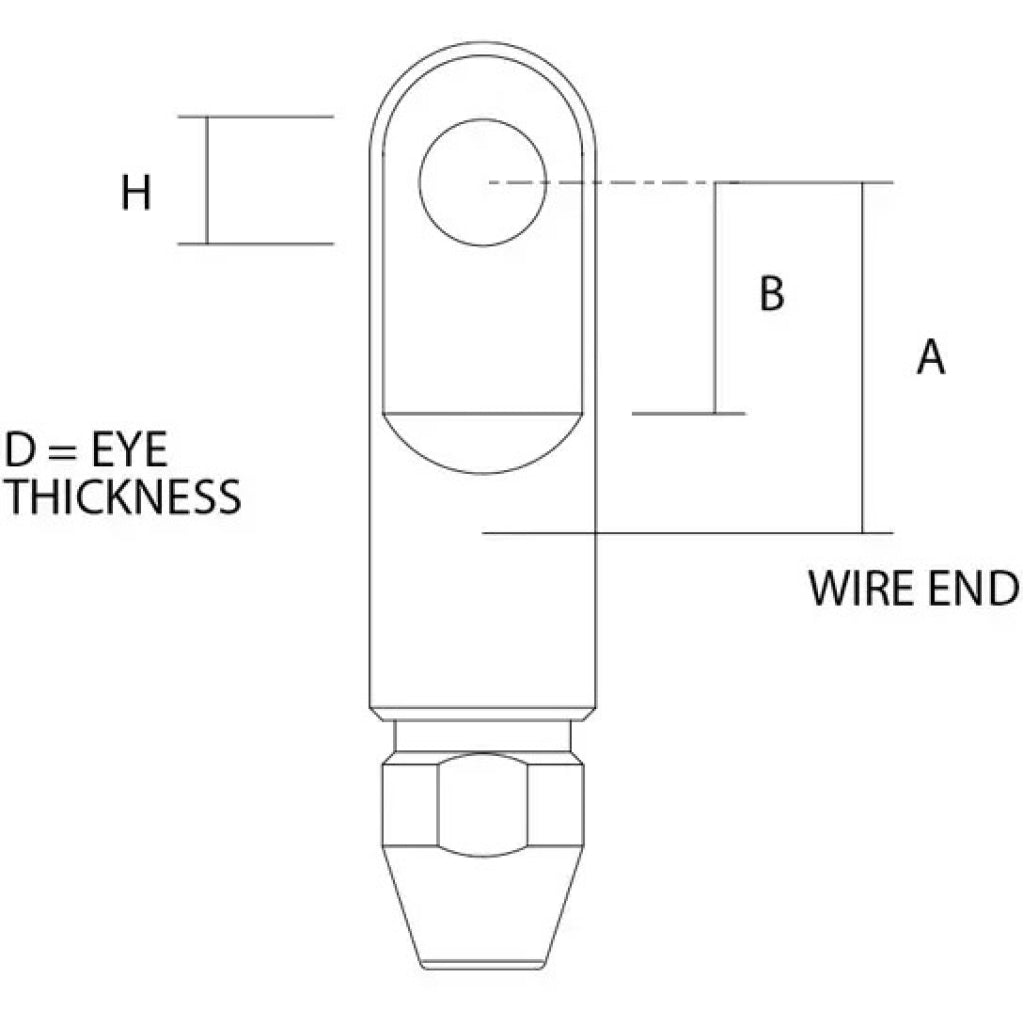

| Sta-Lok Part # | Wire Size | Pin Diameter | Hole Thickness |
|---|---|---|---|
| 133-03 | 1/8" | 1/4" | 13/64" |
| 133-04 | 5/32" | 5/16" | 15/64" |
| 133-05 | 3/16" | 25/64" | 19/64" |
| 133-55-3/8 | 7/32" | 25/64" | 3/8" |
| 133-55 | 7/32" | 29/64" | 3/8" |
| 133-55-1/2 | 7/32" | 33/64" | 3/8" |
| 133-06-3/8 | 1/4" | 25/64" | 3/8" |
| 133-06-7/16 | 1/4" | 29/64" | 3/8" |
| 133-06 | 1/4" | 33/64" | 3/8" |
| 133-07 | 9/32" | 33/64" | 13/32" |
| 133-08-1/2 | 5/16" | 33/64" | 15/32" |
| 133-08-5/8 | 5/16" | 5/8" | 17/32" |
| 133-10 | 3/8" | 5/8" | 17/32" |
| 133-10-3/4 | 3/8" | 3/4" | 17/32" |
