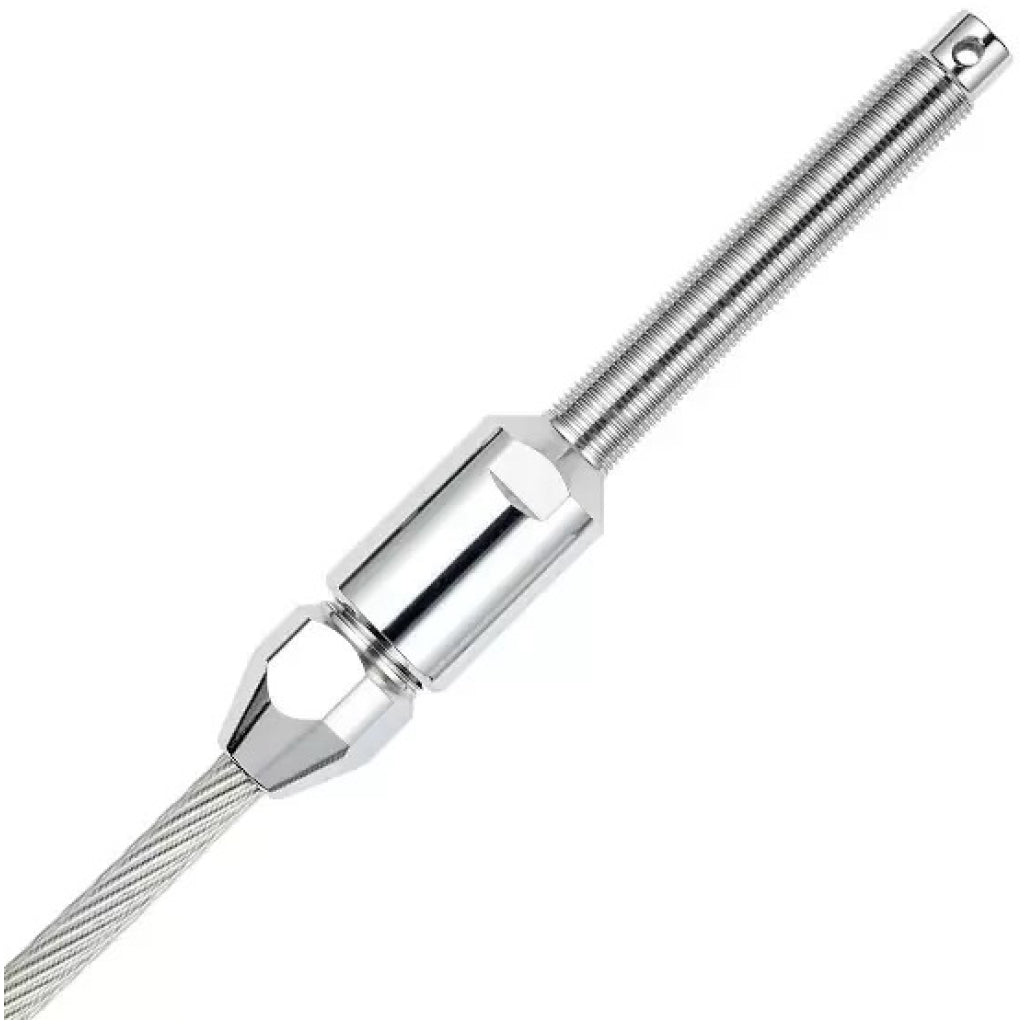

Sta-Lok Marine Stud
- Sta-Lok Self Fit Terminal, the reusable alternative to swage.
- Easy to install. Only basic hand tools required.
- No premeasurement needed.
- Guaranteed stronger than wire rope.
- High strength 316 Stainless steel. Rust Free.
- For right hand and left hand lay wire rope.
- Packed for 1x19 wire as standard.
- Different wedges are available to terminate 7 strand and compacted wire ropes.

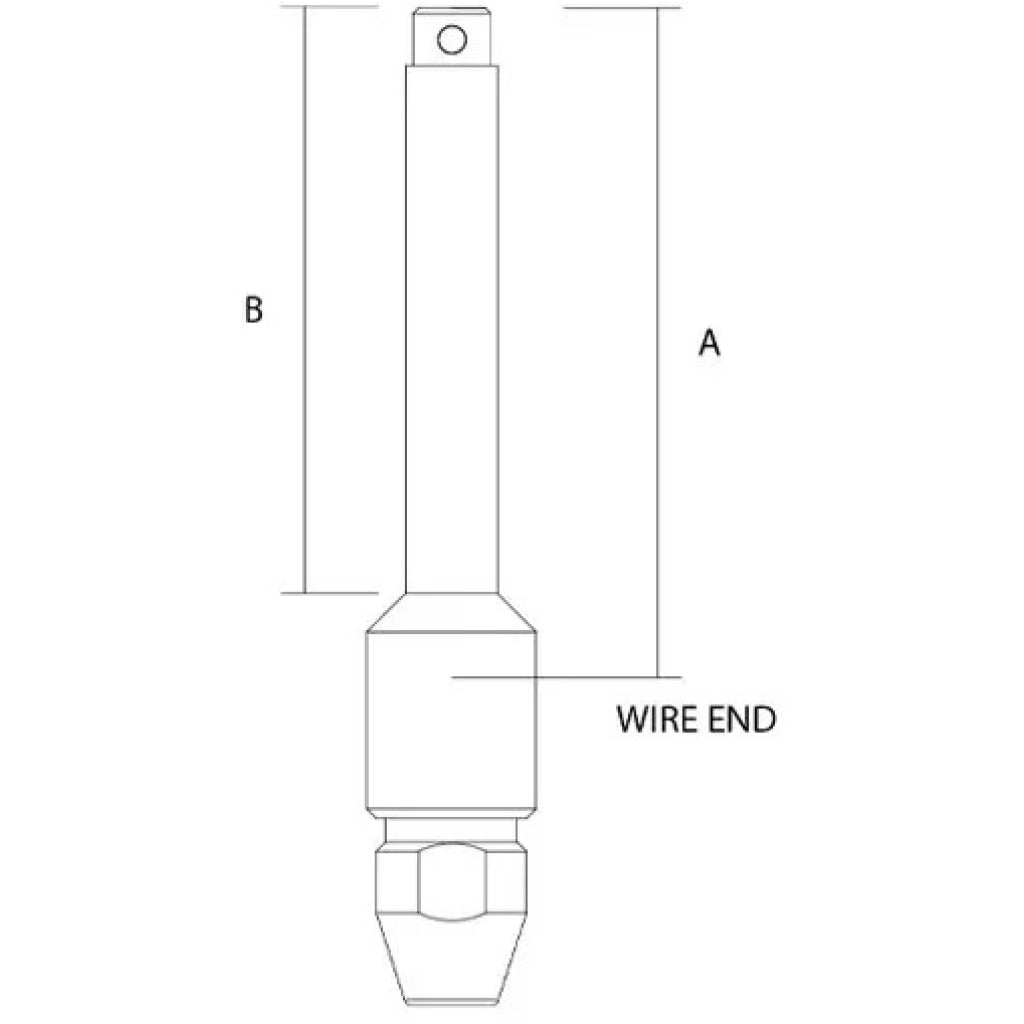

Sta-Lok Part # | Wire Size | Stud Length | Thread Length | Thread Size |
---|---|---|---|---|
136-03 | 1/8" | 2 7/16" | 2 3/16" | 1/4" |
136-04-1/4 | 5/32" | 2 17/32" | 2 5/16" | 5/16" |
136-04 | 5/32" | 2 7/16" | 2 3/16" | 1/4" |
136-05-5/16 | 3/16" | 2 9/16" | 2 5/16" | 5/16" |
136-05 | 3/16" | 3 1/16" | 2 5/8" | 3/8" |
136-05-7/16 | 3/16" | 3 11/32" | 2 15/16" | 7/16" |
136-55 | 7/32" | 3 5/16" | 2 5/8" | 3/8" |
136-55-7/16 | 7/32" | 3 21/32" | 2 15/16" | 7/16" |
136-55-1/2 | 7/32" | 3 11/16" | 3 3/16" | 1/2" |
136-06-3/8 | 1/4" | 3 5/16" | 2 5/8" | 3/8" |
136-06-7/16 | 1/4" | 3 21/32" | 2 15/16" | 7/16" |
136-06 | 1/4" | 3 11/16" | 3 3/16" | 1/2" |
136-07-7/16 | 9/32" | 3 3/4" | 2 15/16" | 7/16" |
136-07 | 9/32" | 3 13/16" | 3 3/16" | 1/2" |
136-08 | 5/16" | 3 7/8" | 3 3/16" | 1/2" |
136-08-5/8 | 5/16" | 4 11/32" | 3 3/4" | 5/8" |
136-10 | 3/8" | 4 3/8" | 3 3/4" | 5/8" |
136-10-3/4 | 3/8" | 5/16" | 4 7/8" | 3/4" |
