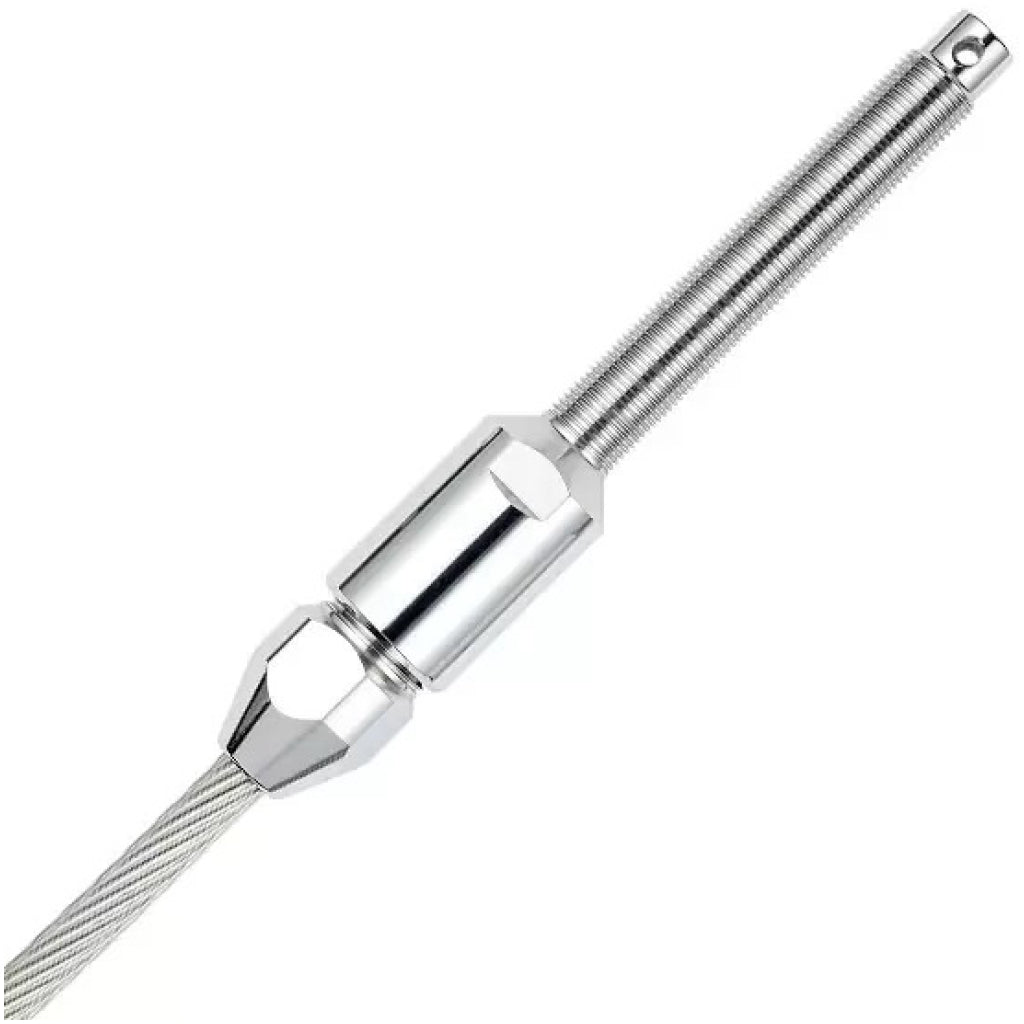

Sta-Lok Marine Stud 7/32" Wire 7/16" Thread

$92.99
SKU: 136-55-7/16
Sta-Lok Marine Stud
  • Sta-Lok Self Fit Terminal, the reusable alternative to swage.
  • Easy to install. Only basic hand tools required.
  • No premeasurement needed.
  • Guaranteed stronger than wire rope.
  • High strength 316 Stainless steel. Rust Free.
  • For right hand and left hand lay wire rope.
  • Packed for 1x19 wire as standard.
  • Different wedges are available to terminate 7 strand and compacted wire ropes.

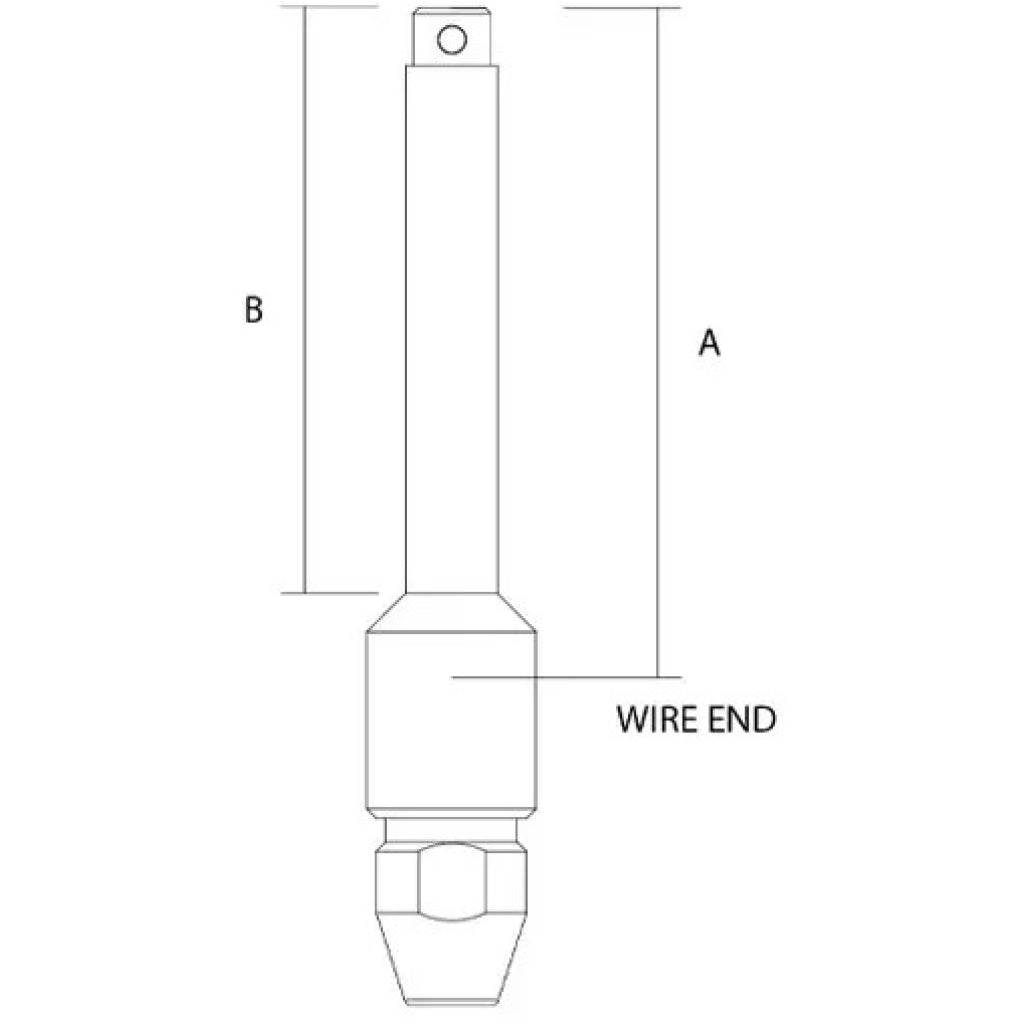

  • Sta-Lok Part # Wire Size Stud Length Thread Length Thread Size
    136-03 1/8" 2 7/16" 2 3/16" 1/4"
    136-04-1/4 5/32" 2 17/32" 2 5/16" 5/16"
    136-04 5/32" 2 7/16" 2 3/16" 1/4"
    136-05-5/16 3/16" 2 9/16" 2 5/16" 5/16"
    136-05 3/16" 3 1/16" 2 5/8" 3/8"
    136-05-7/16 3/16" 3 11/32" 2 15/16" 7/16"
    136-55 7/32" 3 5/16" 2 5/8" 3/8"
    136-55-7/16 7/32" 3 21/32" 2 15/16" 7/16"
    136-55-1/2 7/32" 3 11/16" 3 3/16" 1/2"
    136-06-3/8 1/4" 3 5/16" 2 5/8" 3/8"
    136-06-7/16 1/4" 3 21/32" 2 15/16" 7/16"
    136-06 1/4" 3 11/16" 3 3/16" 1/2"
    136-07-7/16 9/32" 3 3/4" 2 15/16" 7/16"
    136-07 9/32" 3 13/16" 3 3/16" 1/2"
    136-08 5/16" 3 7/8" 3 3/16" 1/2"
    136-08-5/8 5/16" 4 11/32" 3 3/4" 5/8"
    136-10 3/8" 4 3/8" 3 3/4" 5/8"
    136-10-3/4 3/8" 5/16" 4 7/8" 3/4"
