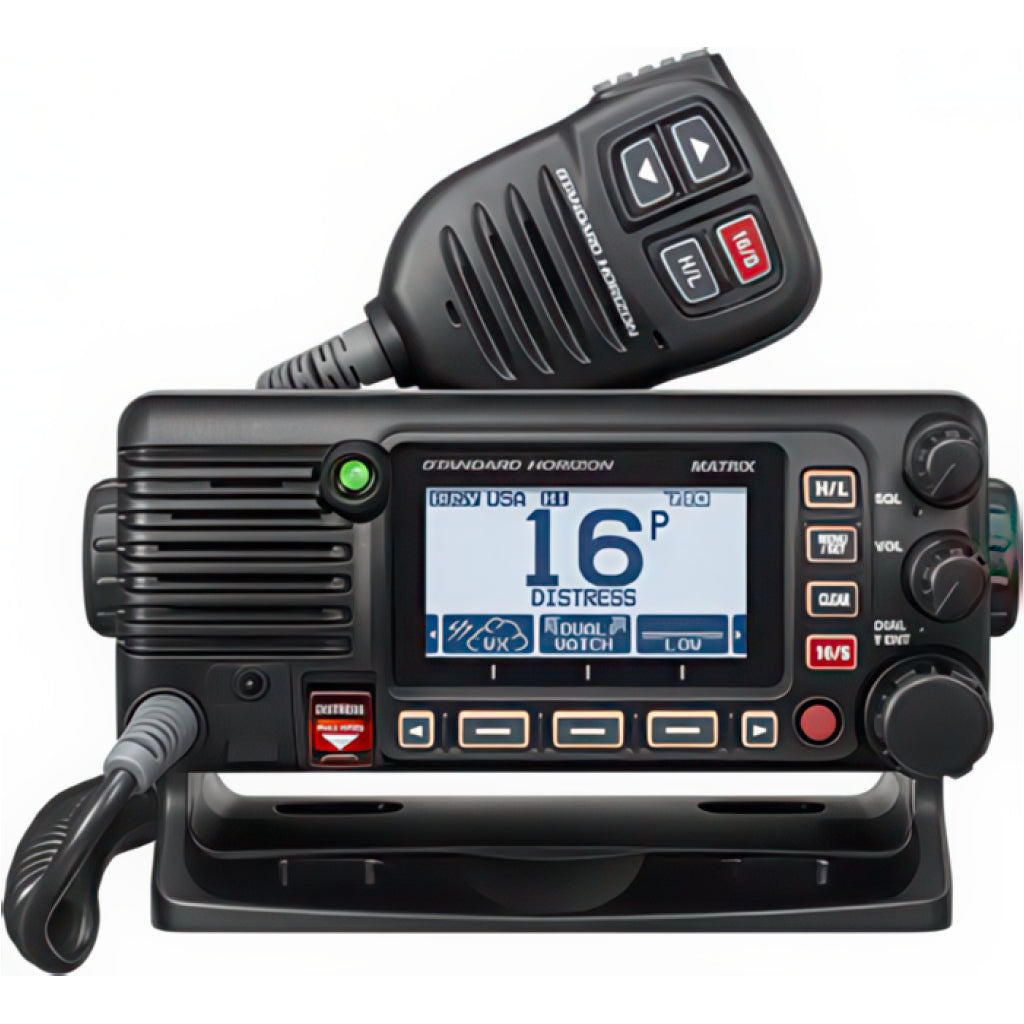

The GX2400 is a feature-rich fixed mount VHF radio with built-in AIS, GPS, and NMEA 2000 connectivity. Easily integrates with existing marine electronics for full DSC, AIS, and navigation functionality.
Connect up to four RAM4X wireless mics via the SCU-30 access point to control all radio functions from up to 65 feet away, including intercom and DSC features.
AIS data displays directly on the front panel, showing vessel info, bearing, speed, and proximity alerts. A 30-watt PA system includes foghorn, siren, and listen-back features, while allowing VHF channel monitoring.
A 32-code voice scrambler offers secure, private communication and is compatible with Standard Horizon 4-code systems.
- NMEA2000 and NMEA0183 Compatible
- Second station capability with wired RAM4 or wireless RAM4X (when used with the optional SCU-30 WiFi Module)
- Built-in integrated 66 channel GPS receiver
- Integrated 32 Code Voice Scrambler and 4 Code Voice Scrambler
- Noise canceling function for both receive and transmit audio
- Meets ITU-R M.493-16Â Class D (Digital Selective Calling)
- Separate Receiver for CH70 (Receiving DSC Calls)
- AIS/AIS SART target display: MMSI, Call Sign, Ship Name, BRG, DST, SOG and COG
- E2O (Easy to Operate) Icon & Menu System
- Preset key stores up to 10 favorite channels
- Intercom Feature between the Radio and an Optional Second Station
- Programmable Scan, Priority Scan, and Multi Watch
- DSC position request and report functions
- GPS Compass, Waypoint and GPS status pages
- Enter, Save, and Navigate to a waypoint using the Compass page
- Navigation (LAT/LON, Time, SOG and COG) information is shown on display
- Programmable CPA (Closest Point of Approach) or TCPA (Time to Closest Point of Approach) alarms
- Commercial grade receiver (Spurious & Image rejection better than –80dB)
- 30 Watt PA/Loud Hailer with programmed fog signals and listen back
- GM (Group Monitor) Using DSC Group position Calling
- MOB (Man over Board) Operation
- Excellent Visibility with Busy LED Indicator
- Selectable Night Mode Display
- NOAA Weather Channels with Weather Alert
