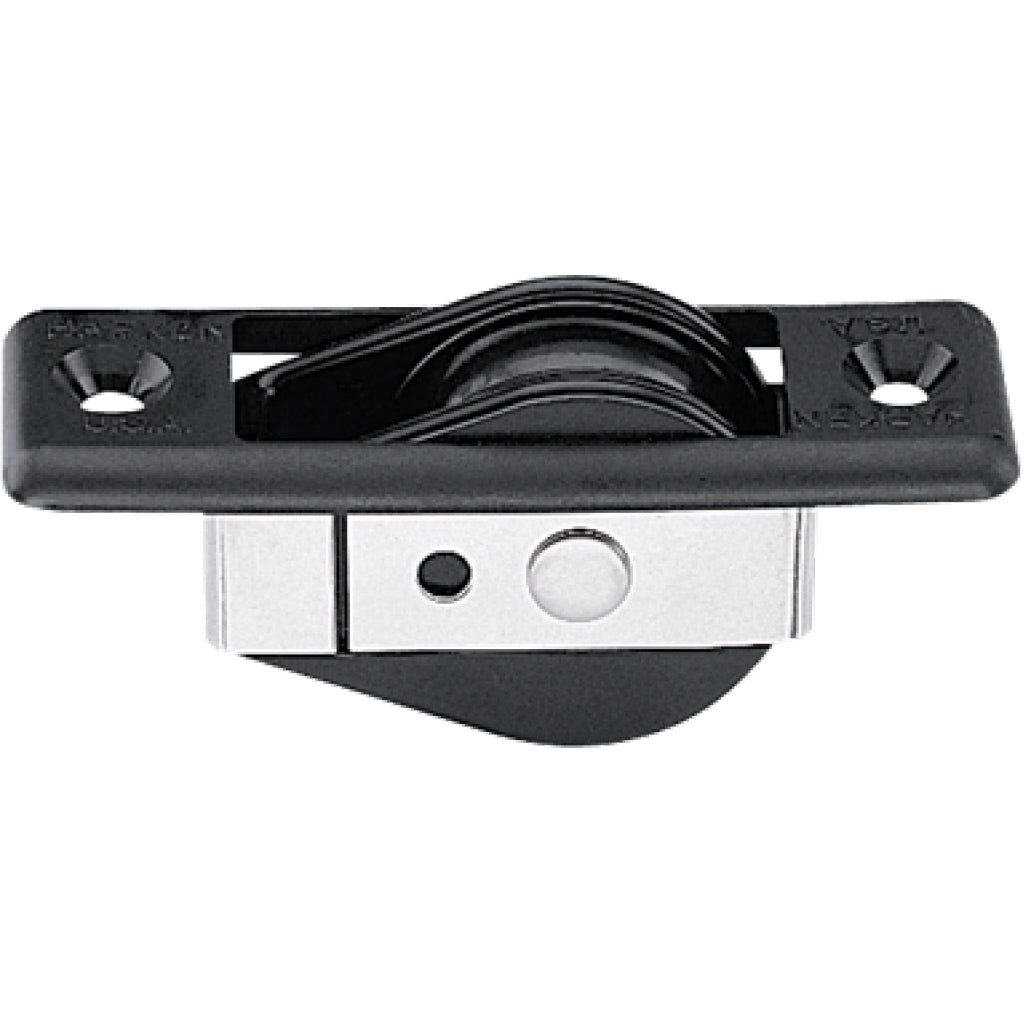

Low-friction Bullet blocks lead control lines aft.
They are compact and lightweight, with fast trim and release under high or low loads.
A range of styles lets these blocks adapt to almost all control line applications.
- Sheave Ø (mm): 38 mm
- Sheave Ø (in): 1 1/2 in
- Length (mm): 89 mm
- Length (in): 3 1/2 in
- Weight (g): 64 g
- Weight (oz): 2.25 oz
- Maximum line Ø (mm): 10 mm
- Maximum line Ø (in): 3/8 in
- Fasteners (mm): 5 FH mm
- Fasteners (in): #10 FH in
- Mounting hole spacing (mm): 73 mm
- Mounting hole spacing (in): 2 7/8 in
- Cutout (mm): 24 x 56 mm
- Cutout (in): 15/16 x 2 3/16 in
- Maximum working load (kg): 136 kg
- Maximum working load (lb): 300 lb
- Breaking load (kg): 907 kg
- Breaking load (lb): 2000 lb
