Trident Marine Lpg 2-Stage Auto Regulat

Item# 1230-1411

Trident Marine Lpg 2-Stage Auto Regulat usually available 5-7 business days upon ordering.

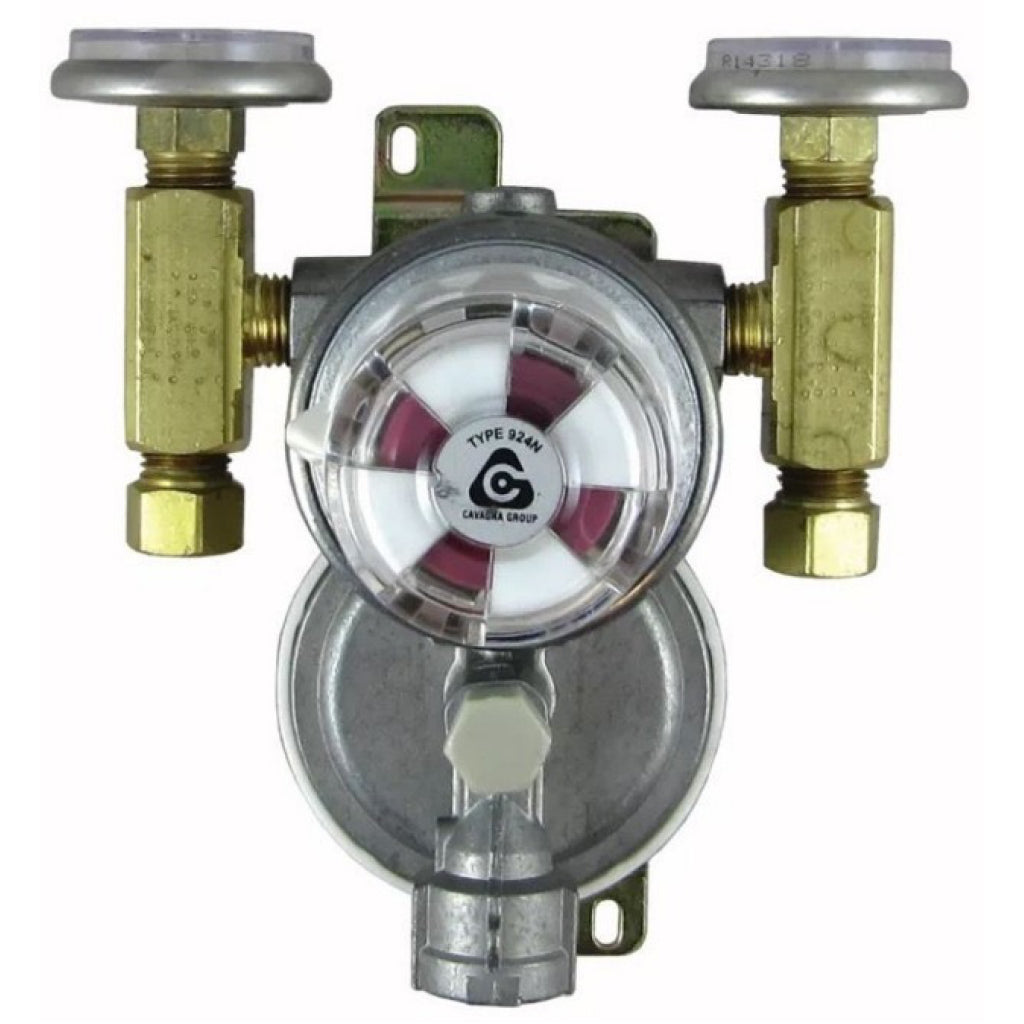

This Trident Marine Wall-Mount Propane Regulator Assembly is designed for use with a two-tank propane system.


  • Regulates tank pressure more efficiently to stove with 75% more BTU capacity (at service tank) than single-stage regulator
  • With both tank valves open, regulator automatically changes over to full tank once first seleted tank is empty
  • Indicator dome shows orange until selector switch is pushed completely toward full tank; empty tank can then be disconnected for refill
  • Meets ABYC standards


  • UL-listed body fully assembled and leak tested with (2) 300 psi gauges, 3/8" FPT outlet and wall mounting brackets
  • Connect (2) pigtail hoses between regulator inlets and tanks
  • Dimensions: 6-3/4" H x 5-1/4" W x 4"
